Non-Sparking Mechanical Adjustable Torque Click Wrenches with Window Scale and Fixed Ratchet Head in Copper Beryllium

SKU
NSB041
Product Details
  • Made of copper beryllium
  • Large dual scale in N.m/ft.lb
  • Reversible ratchet head allowing clockwise operation only
  • Micrometer and main scale for adjustment
  • Sturdy plastic handle with a nice positive lock which engages or disengages clearly
  • Good positive audible engagement and the wrench always returns to home after each test
  • Accurate to ±6% of reading
  • Ratchet with 24-45 teeth and easy-change direction lever on top of the head
  • Supplied with a declaration of conformity traceable to international standards
  • All in individual rigid case for maximum protection and storage
  • Non-sparking (NS) tools designed for use in potentially explosive environments, where conventional steel tools may produce sparks
  • Non--magnetic and highly corrosion resistant
Documents
Technical Details
Design Type Tested 003 21 Beep Warning Stop Applying Toque Dual Scale Declaration Conformity Fixed Pear Rev Ratchet Clockwiswe Accuracy 6%
Grouped product items
Product Buy online
NSB041-8-25 5-25 Nm 3.75-18.75 lb·ft 1/4" 290 mm 277 mm 214 mm 27 mm 14 mm 20,5 mm 0.42 kg
NSB041-12-50 10-50 Nm 7.5-37.5 lb·ft 3/8'' 360 mm 340 mm 270 mm 40 mm 33 mm 22,5 mm 0.96 kg
NSB041-16-100 20-100 Nm 15-75 lb·ft 1/2'' 405 mm 385 mm 315 mm 40 mm 37 mm 22 mm 1.07 kg
NSB041-16-200 40-200 Nm 30-150 lb·ft 1/2'' 500 mm 480 mm 410 mm 40 mm 37 mm 22 mm 1.28 kg
NSB041-16-260 60-260 Nm 45-195 lb·ft 1/2'' 595 mm 575 mm 505 mm 40 mm 37 mm 22 mm 1.5 kg
NSB041-24-670 150-670 Nm 110-500 lb·ft 3/4" 1150 mm 1139 mm 1069 mm 63 mm 56 mm 33,5 mm 5.75 kg
NSB041-32-900 200-900 Nm 150-675 lb·ft 1" 1245 mm 1234 mm 1164 mm 63 mm 61 mm 33,5 mm 7.25 kg
Media

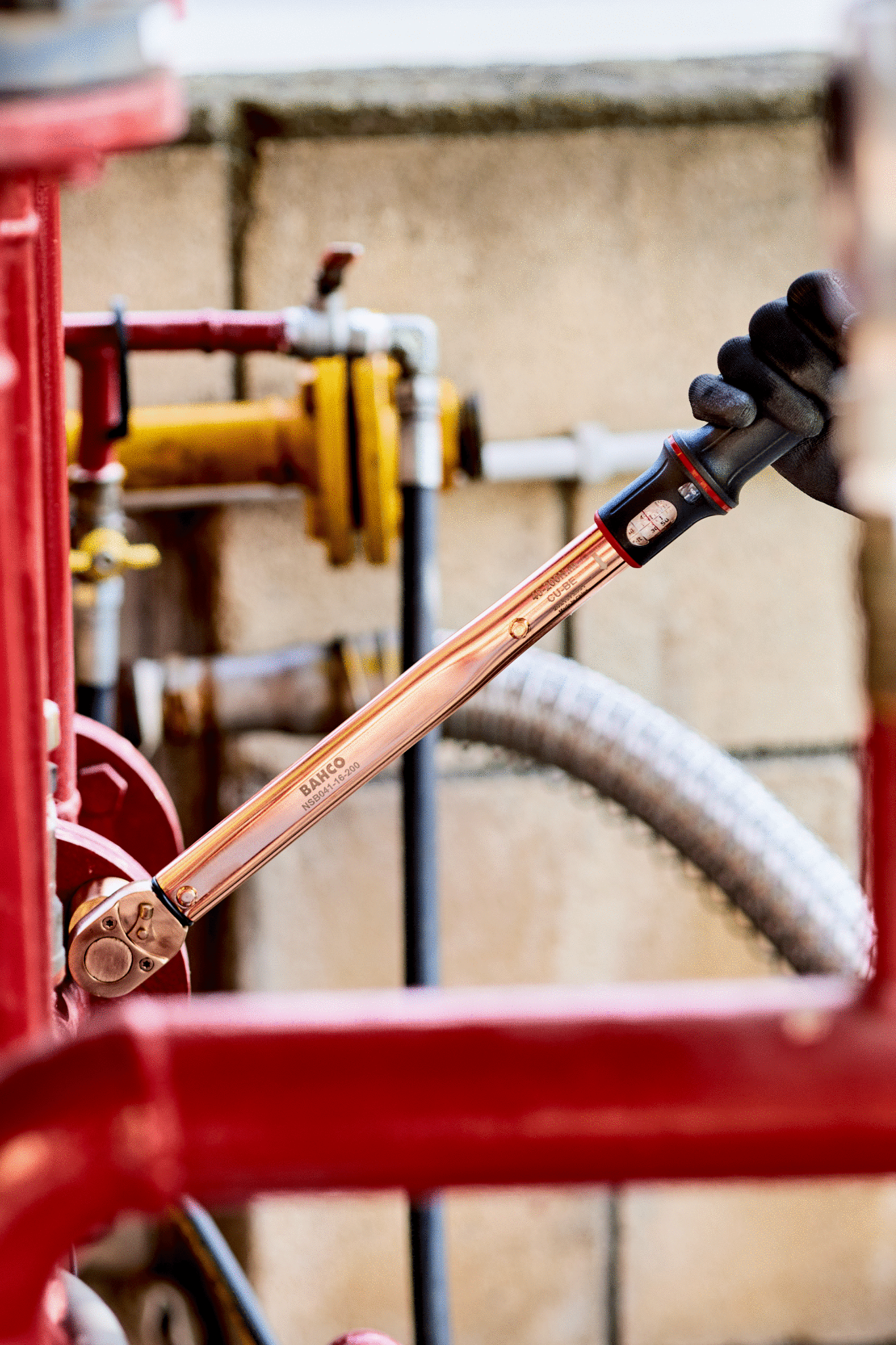

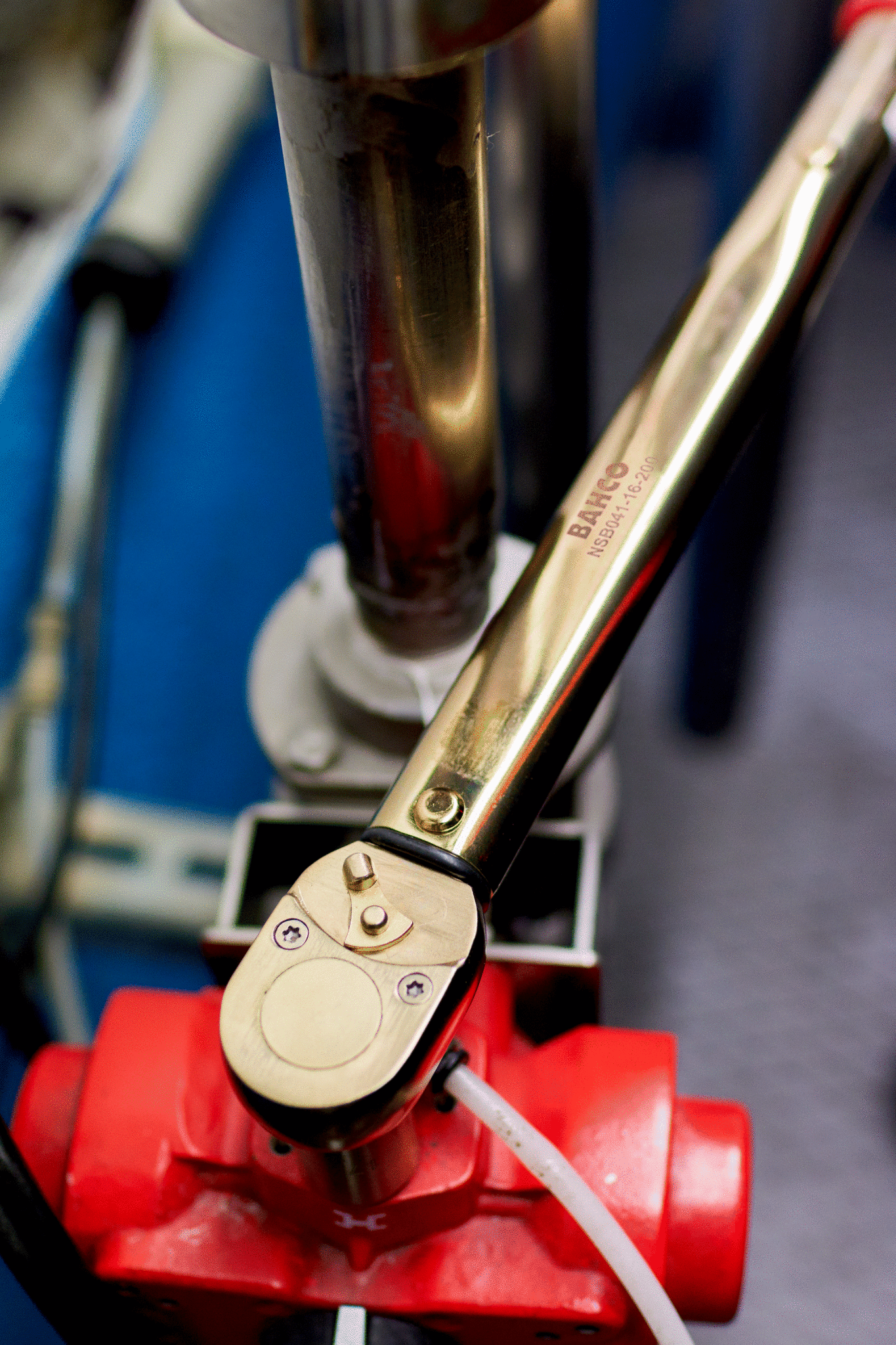

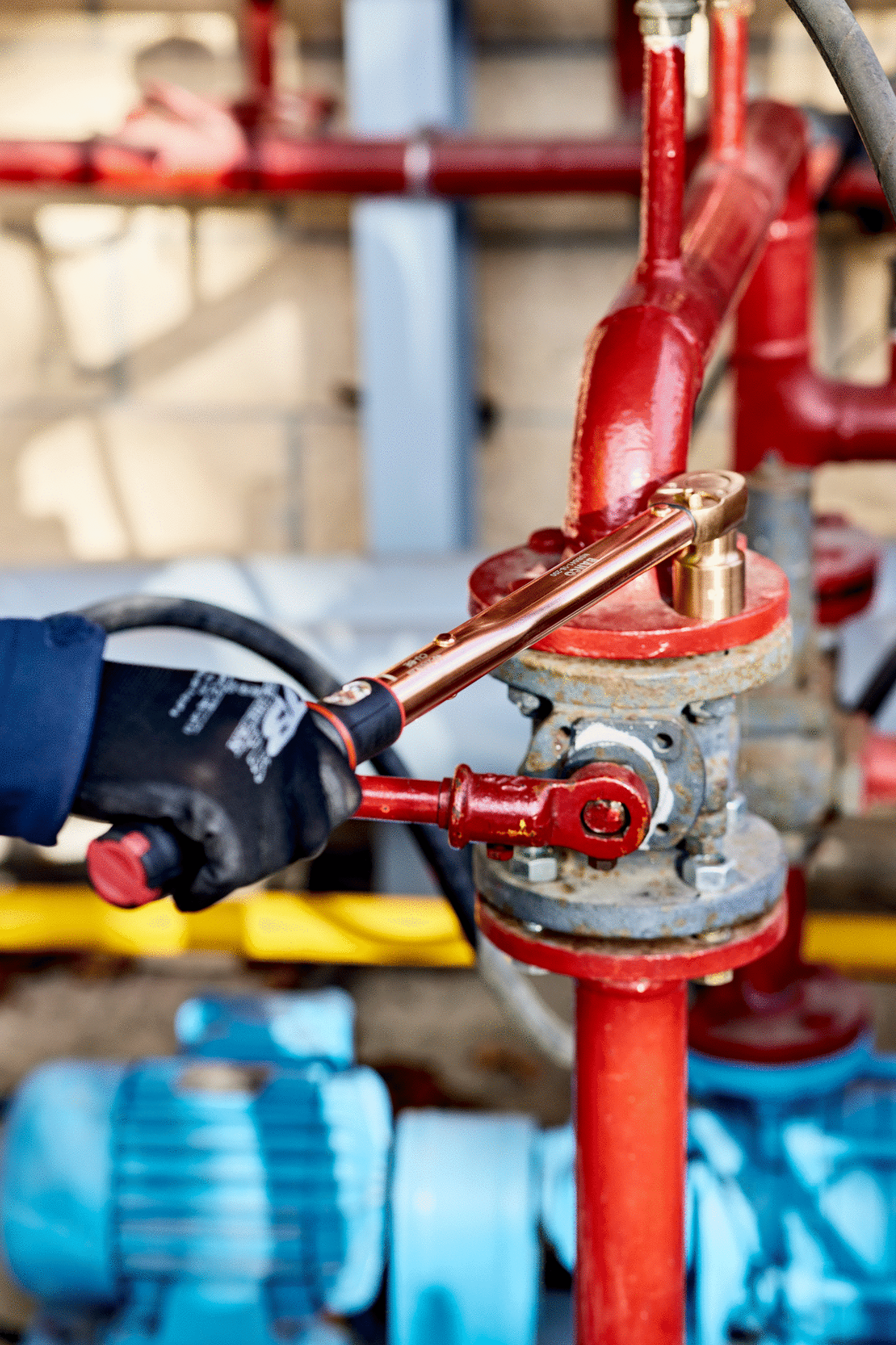

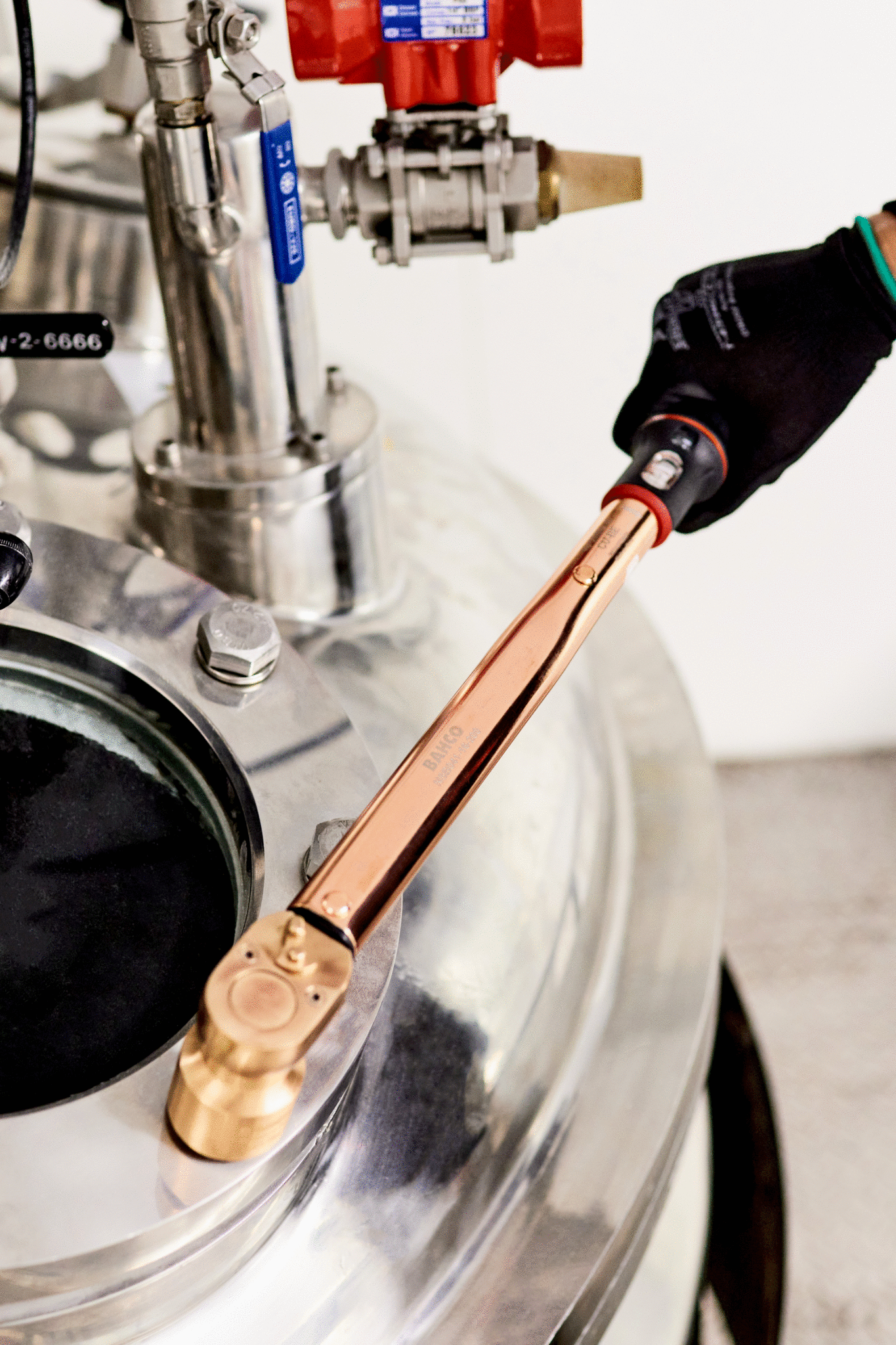

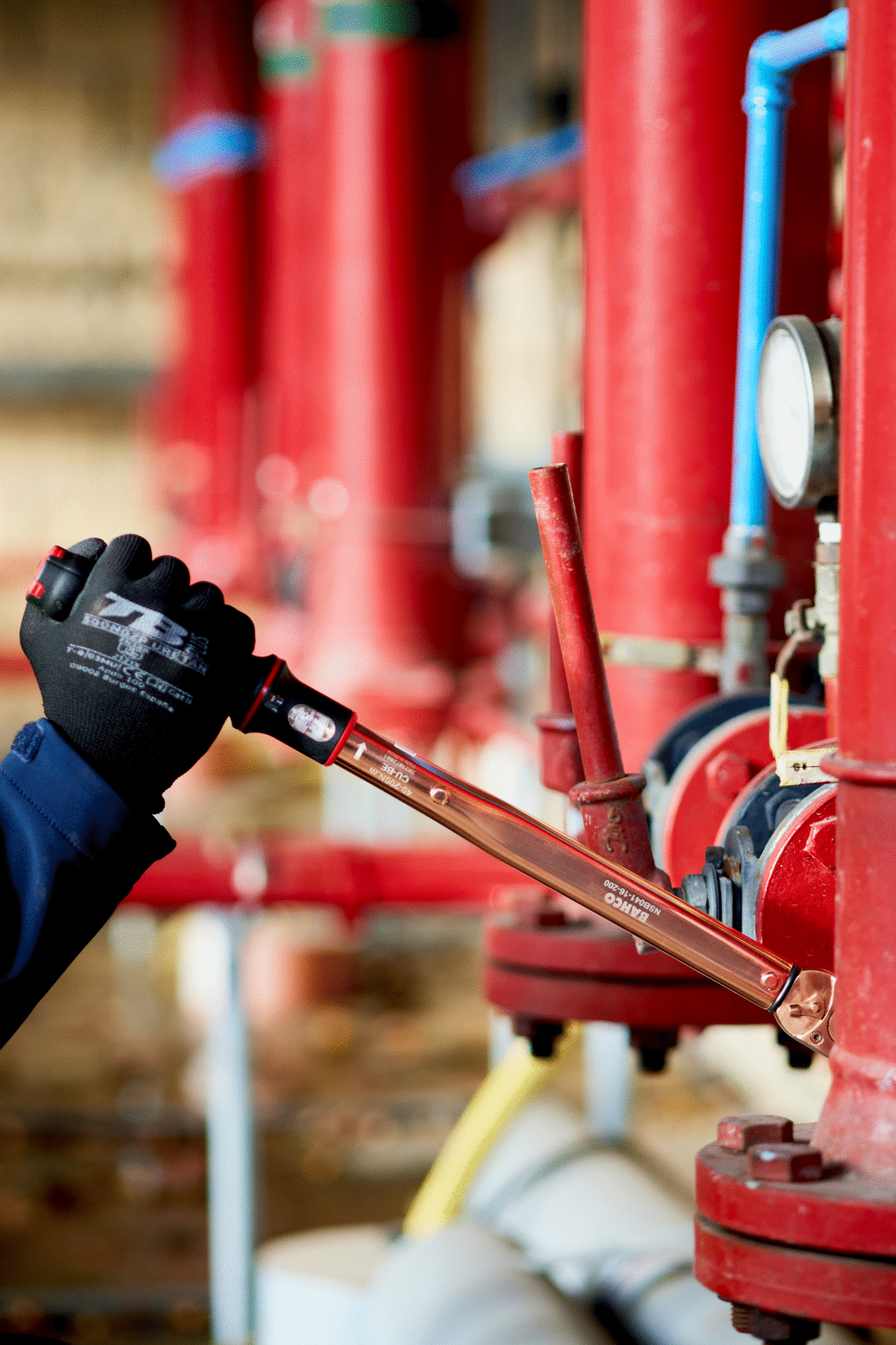

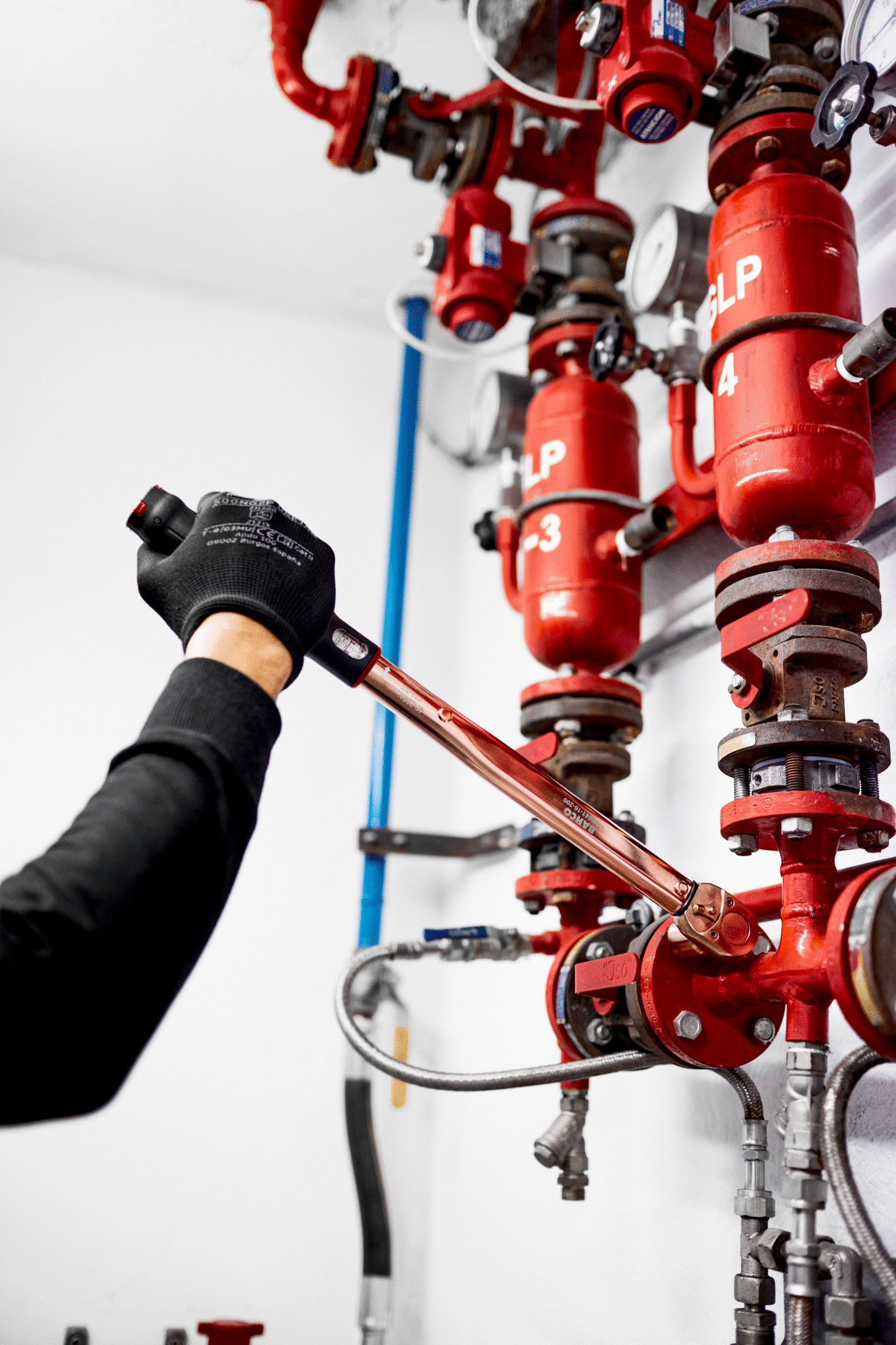

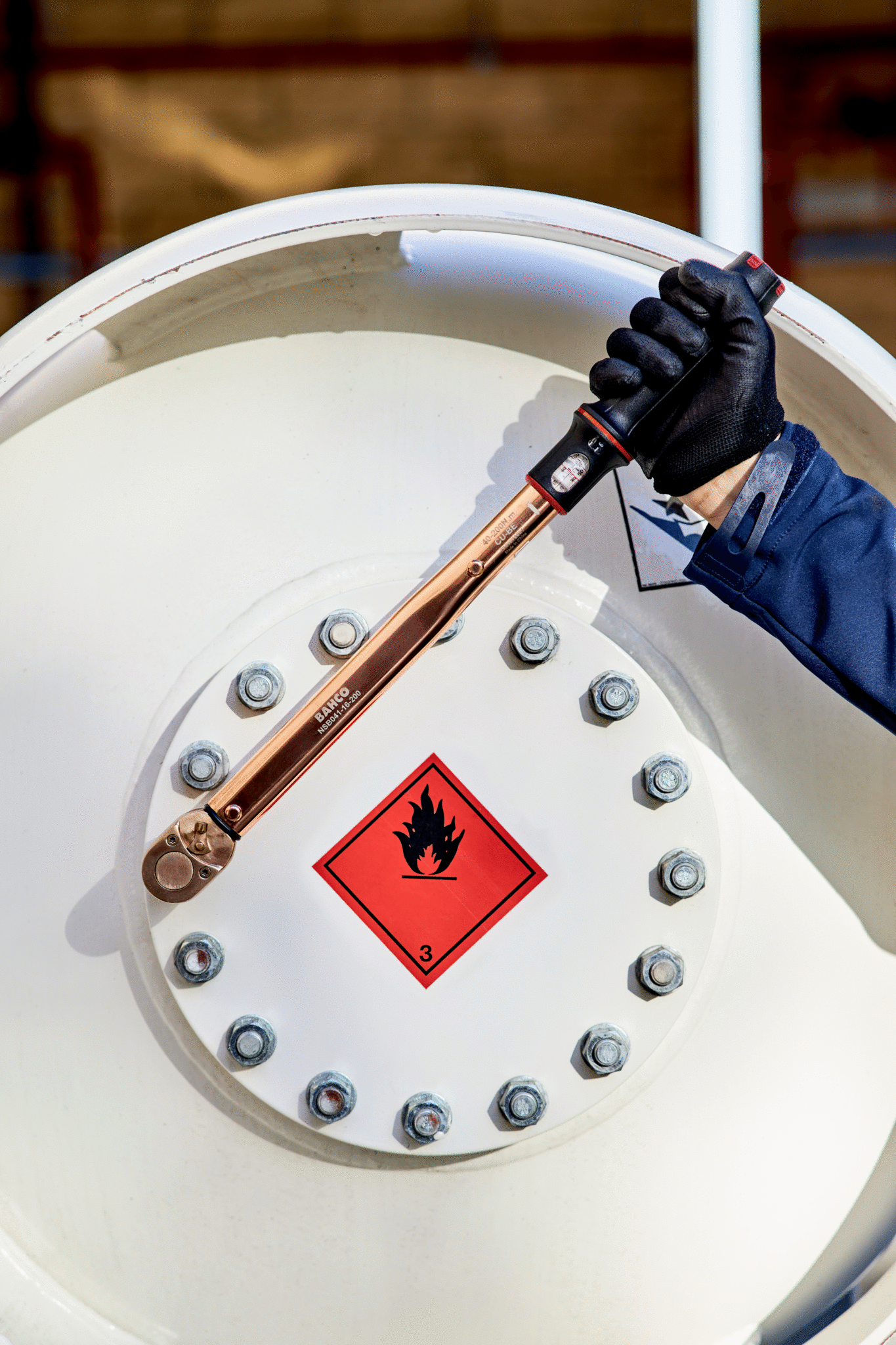

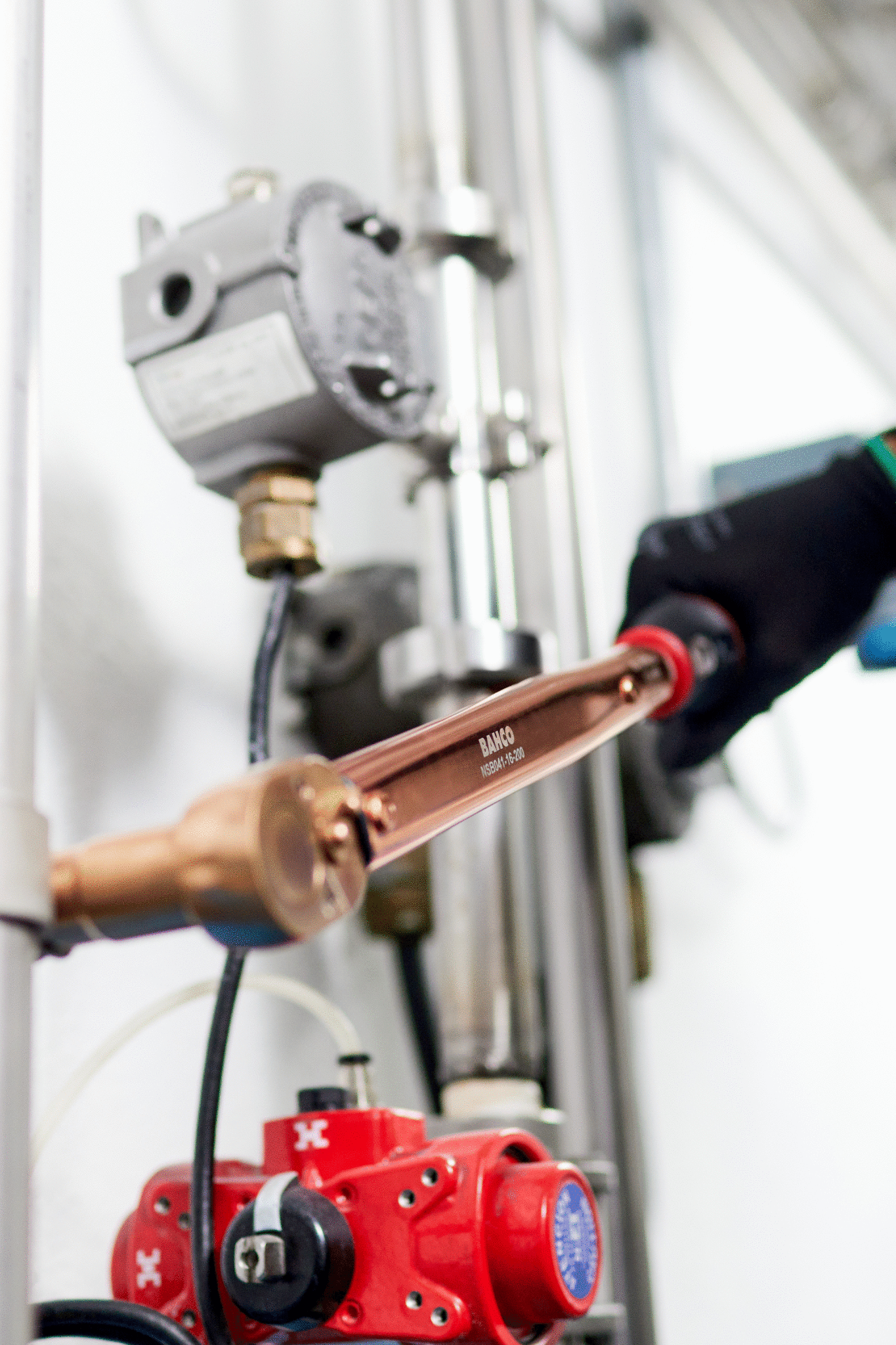

Bahco-NSB041-16-200-appl-07.jpg Bahco-NSB041-16-200-appl-08.jpg Bahco-NSB041-16-200-appl-02.jpg Bahco-NSB041-16-200-appl-01.jpg Bahco-NSB041-16-200-appl-05.jpg Bahco-NSB041-16-200-appl-03.jpg Bahco-NSB041-16-200-appl-06.jpg Bahco-NSB041-16-200-appl-04.jpg
