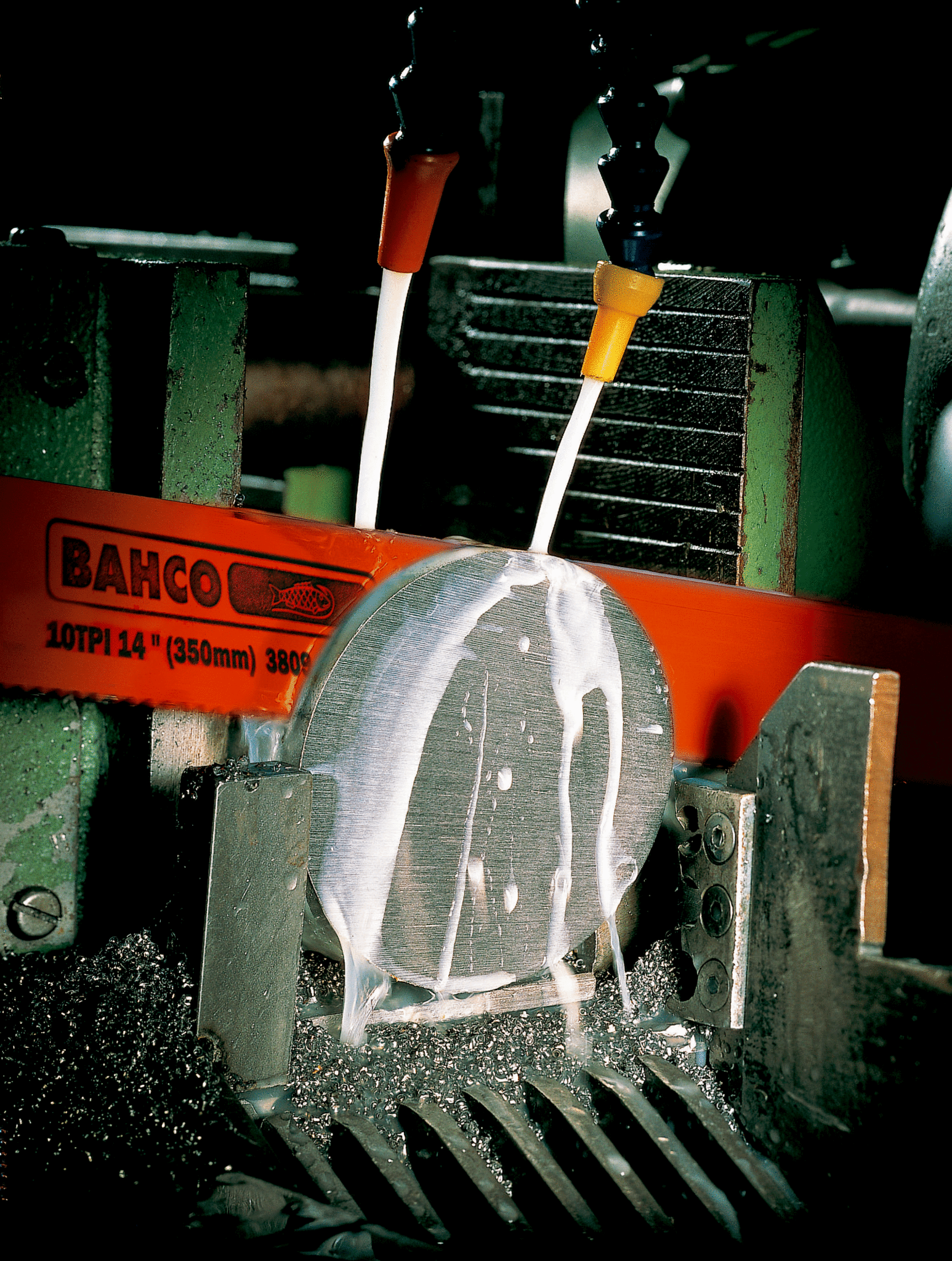

Sandflex® Bi-Metal Power Hacksaw Blades

SKU
3809
Product Details
  • Suitable for use on any material
  • Sandflex® is virtually an unbreakable bi-metal hacksaw blade
  • Shatterproof blade that can withstand high feed pressures yet giving accurate, fast cutting rates
  • Sandflex® blades are safer to use in all circumstances, especially on old machines or with unskilled operators
  • Correct blade tension is essential for ensuring a straight kerf and a long useful life of the blade
  • If the tension is too low, the blade will bend upwards or twist, giving rise to high stresses, heavy wear of the blade and uneven, crooked kerfs
  • Excessive tension causes high stresses in the blade and saw frame
  • As a general rule, harder materials call for a lower stroke rate and higher feed pressure
  • If the chips are burnt, feed pressure is too high
  • If tooth cracks appear, feed pressure is too high
  • Fine, powdery chips indicate that feed pressure is too low
  • Fine curled chips indicate the optimal feed pressure
  • The teeth should not be touching the workpiece when the machine is started
  • A useful rule of thumb is that at least three teeth should be engaged at any time
Technical Details
Grouped product items
Product Buy online
3809-450-32-1.60-10 10 450 mm 32 mm 1.60 mm 177 g
3809-500-45-2.25-6 6 500 mm 45 mm 2.25 mm 398 g
3809-600-50-2.50-4 4 600 mm 50 mm 2.50 mm 588 g
3809-300-25-1.25-10 10 300 mm 25 mm 1.25 mm 73 g
3809-350-32-1.60-10 10 350 mm 32 mm 1.60 mm 145 g
3809-400-38-2.00-6 6 400 mm 38 mm 2.00 mm 219 g
3809-500-38-2.00-10 10 500 mm 38 mm 2.00 mm 304 g
3809-525-45-2.25-6 6 525 mm 45 mm 2.25 mm 423 g
3809-350-25-1.25-14 14 350 mm 25 mm 1.25 mm 88 g
3809-400-32-1.60-14 14 400 mm 32 mm 1.60 mm 160 g
3809-450-38-2.00-4 4 450 mm 38 mm 2.00 mm 249 g
3809-525-38-2.00-6 6 525 mm 38 mm 2.00 mm 314 g
3809-600-50-2.50-6 6 600 mm 50 mm 2.50 mm 588 g
3809-300-25-1.25-14 14 300 mm 25 mm 1.25 mm 73 g
3809-400-32-1.60-6 6 400 mm 32 mm 1.60 mm 160 g
3809-450-32-1.60-6 6 450 mm 32 mm 1.60 mm 177 g
3809-500-45-2.25-4 4 500 mm 45 mm 2.25 mm 398 g
3809-550-45-2.25-6 6 550 mm 45 mm 2.25 mm 433 g
3809-350-32-1.60-6 6 350 mm 32 mm 1.60 mm 145 g
3809-400-38-2.00-4 4 400 mm 38 mm 2.00 mm 219 g
3809-450-38-2.00-6 6 450 mm 38 mm 2.00 mm 249 g
3809-525-38-2.00-10 10 525 mm 38 mm 2.00 mm 314 g
3809-350-25-1.25-10 10 350 mm 25 mm 1.25 mm 88 g
3809-400-32-1.60-10 10 400 mm 32 mm 1.60 mm 160 g
