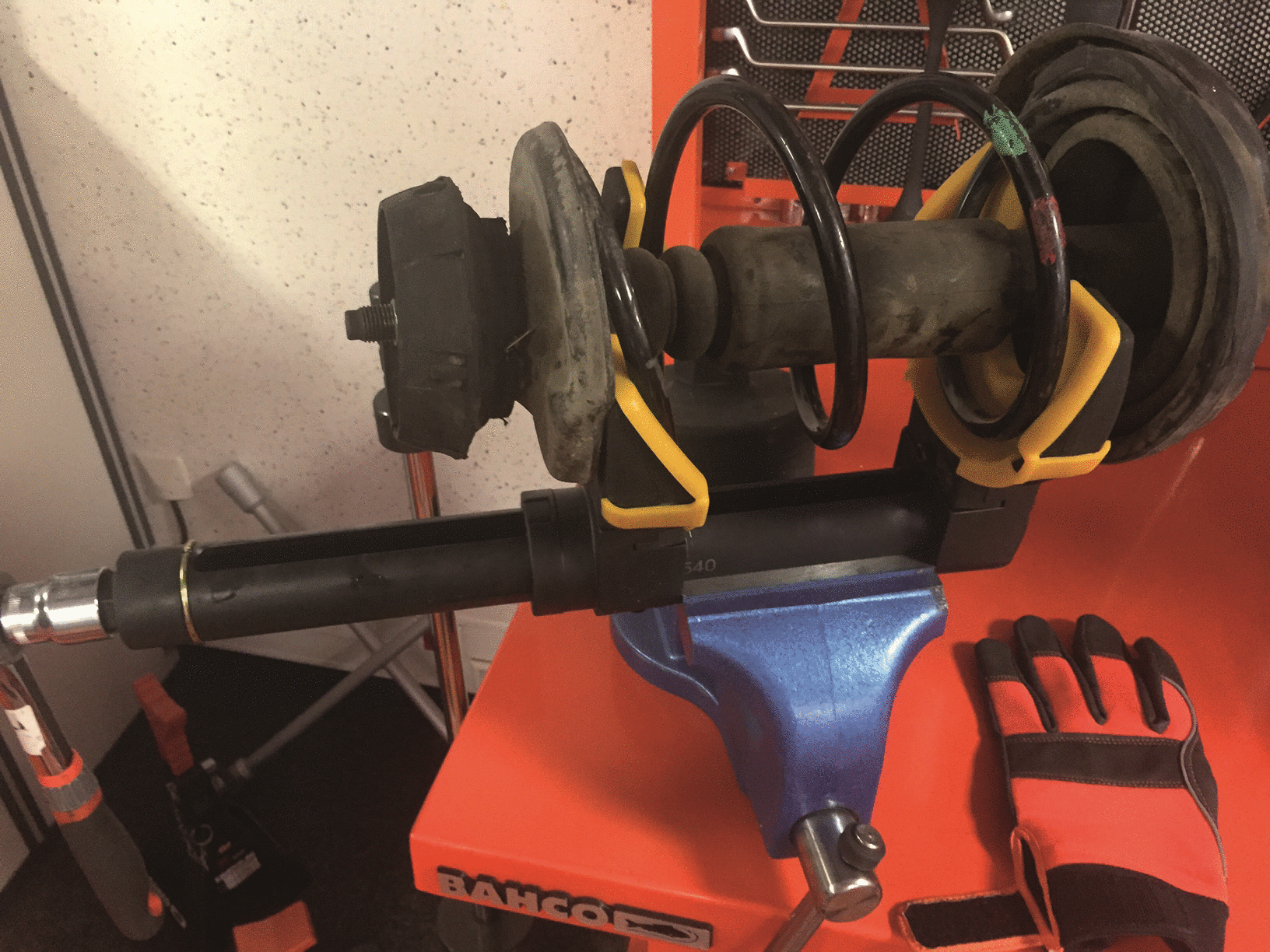

MacPherson spring compressor

SKU

BS15

Product Details

MacPherson spring compressor
Maximum compression capacity: 1 T
Can be used for both straight and conical springs
Maximum spring working range: 300 mm
The 24 mm hex head can be operated manually or with an air tool
Set contents:
Device/piston [Ref. BS1540]
3 pairs of jaws with plastic covers [Ref. BS15125, BS15160, BS15212] to avoid damage to the spring
Small adaptor for conical springs [Ref. BS1550]
Universal, covers 90% of the vehicle fleet thanks to the 3 different sizes of the jaws provided
Jaws working range
BS15125 : 80 - 115 mm
BS15160: 110 - 150 mm
BS15212: 140 - 195 mm
Jaws equipped with spring protectors
All components are available individually
Supplied in a blow moulded case, in plastic inlay for better tool management

Documents

Technical Details

Grouped product items
Product
BS15	510 mm	425 mm	125 mm	1000 kg	15.20 kg
BS15125	160 mm	110 mm	43 mm	1000 kg	0.935 kg
BS15125C	385 mm	160 mm	165 mm	1000 kg	0.035 kg
BS15160	160 mm	160 mm	42 mm	1000 kg	2.50 kg
BS15160C	170 mm	160 mm	42 mm	1000 kg	0.06 kg
BS15212	212 mm	160 mm	42 mm	1000 kg	1.475 kg
BS15212C	215 mm	160 mm	24 mm	1000 kg	0.07 kg
BS1550	95 mm	56 mm	45 mm	1000 kg	0.60 kg
