ERGO™ Side Cutting Pliers with Insulated Handles and Phosphate Finish

Product Details
  • Two-component ERGO™ insulated handles: thermoplastic surface on tough polypropylene provides superior grip

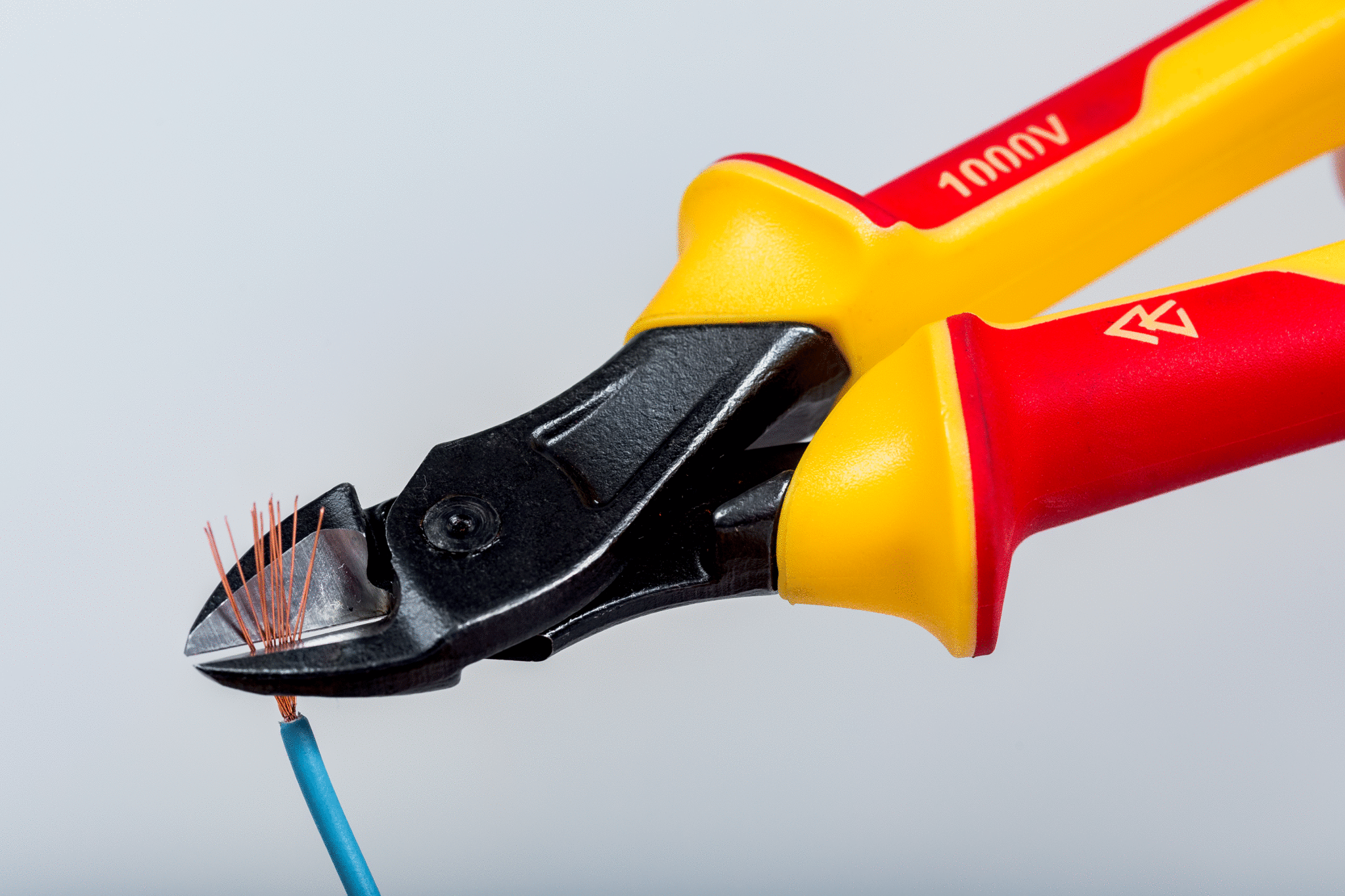

  • Suitable for cutting Cu, Fe+ and piano wire
  • Insulated side cutting pliers developed according to the scientific ERGO™ process for working on live equipment up to 1000 V
  • Comfortable 1000 V insulated handles
  • Distance from joint to centre of cutting edges is reduced for greater leverage and increased cutting capacity
  • High-performance alloy steel
  • Phosphate finish, anti-corrosion treated

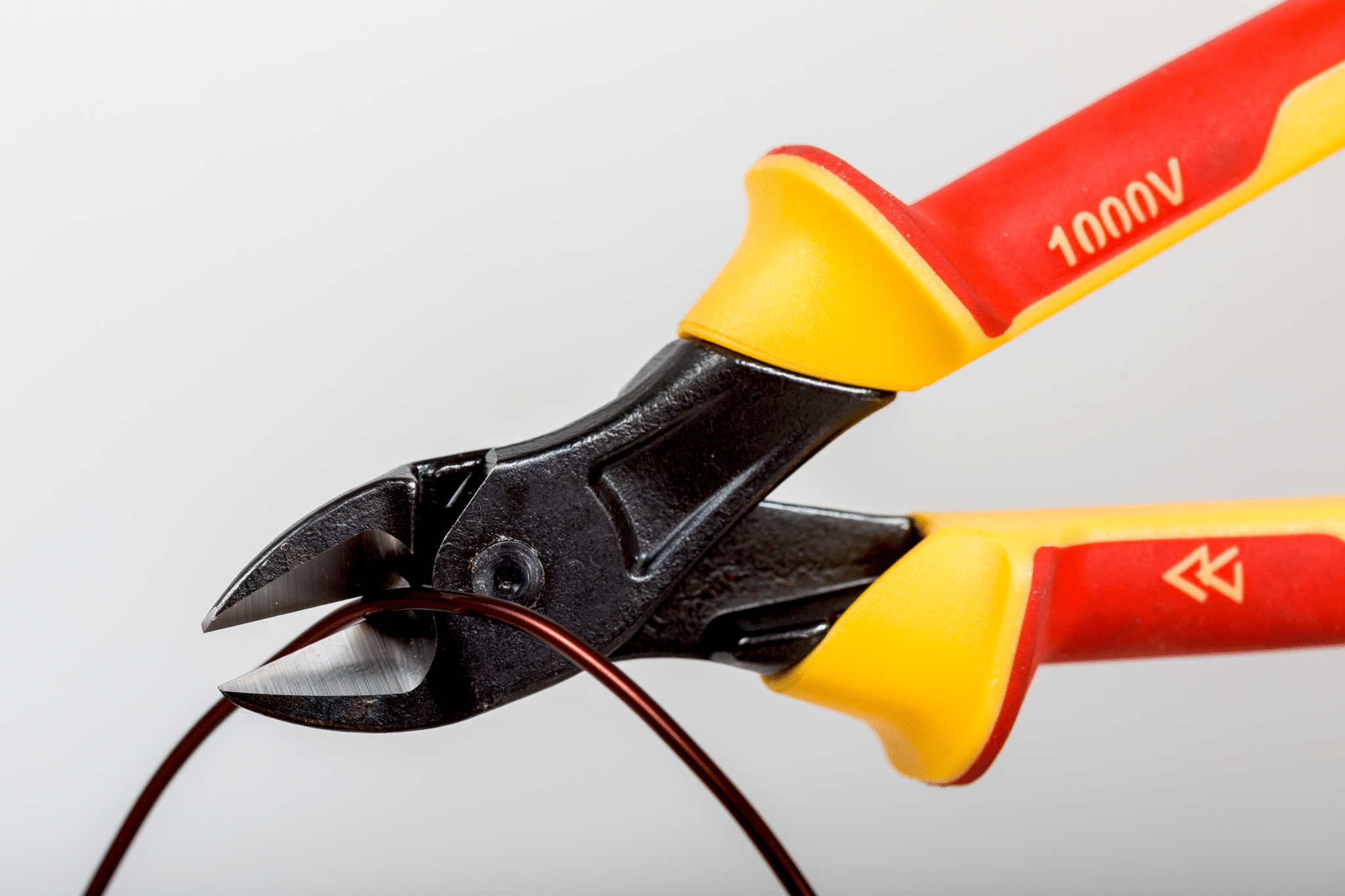

  • Cutting radius progresses along edge in order to cut hard material such as piano wire close to the joint as well as soft materials
  • Screw joint provides excellent running and accurate alignment of cutting edges
  • Round-shaped jaws give improved accessibility in confined spaces

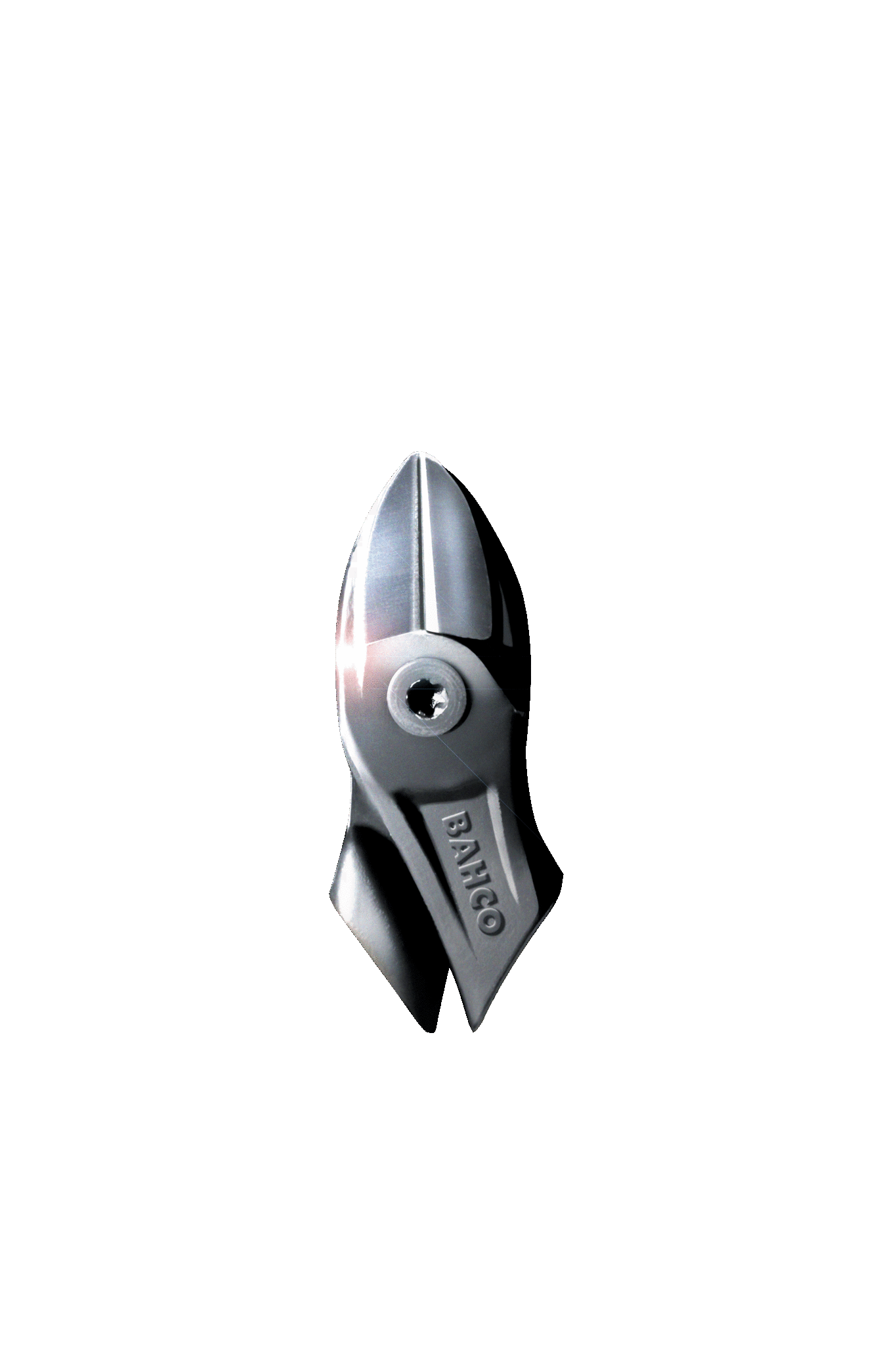

  • Induction hardened cutting edges
  • Heavy-duty induction hardened cutting edge
  • Less effort required compared to conventional cutting pliers
  • Reduced shank width ideally for carrying in the pocket
  • Each and every tool is tested to 10.000V for 10 seconds at the end of the manufacturing cycle
Technical Details
1000V Iec60900 1000V TRI VDE GS
Grouped product items
Product Buy online
2101S-140 140 mm 16,4 mm 19 mm 8 mm 1.5 mm 1.3 mm 16,4 mm 3.7 mm 2.0 mm 1.8 mm 126 g
2101S-160 160 mm 18,1 mm 21 mm 9 mm 2 mm 1.5 mm 18,1 mm 3.8 mm 2.5 mm 2.0 mm 162 g
2101S-180 180 mm 20 mm 23 mm 10 mm 2.5 mm 1.5 mm 20 mm 4.0 mm 2.7 mm 2.3 mm 245 g
