Ball Bearing Internal Extractors with Gunmetal Finish

SKU
4521N
Product Details
  • Made of special steel material
  • Gunmetal finish
  • For extracting ball bearings from housings, ball bearing outer races, bushings and oil seals
  • The extractor shank has multiple slots (1-4) which allows uniform spreading on the periphery and safe removal of the ball bearing

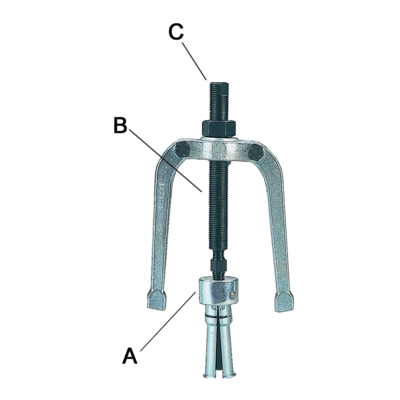

  • To be used with puller 4522 or hammer 4523G or 4524G
  • When placed inside the ball bearing and turning the nut, the bearing will be grip by the inside
Documents
Technical Details
Grouped product items
Product Buy online
Ball Bearing Internal Extractor with Gunmetal Finish 5-7 mm 4521N-00 5-7 mm 2 30 mm 4522-1 40 g
Ball Bearing Internal Extractor with Gunmetal Finish 7-9 mm 4521N-0 7-9 mm 2 30 mm 4522-1 40 g
Ball Bearing Internal Extractor with Gunmetal Finish 9-12 mm 4521N-A 9-12 mm 2 30 mm 4522-1 40 g
Ball Bearing Internal Extractor with Gunmetal Finish 10-13 mm 4521N-B 10-13 mm 2 30 mm 4522-1 50 g
Ball Bearing Internal Extractor with Gunmetal Finish 13-17 mm 4521N-C 13-17 mm 4 50 mm 4522-1 80 g
Ball Bearing Internal Extractor with Gunmetal Finish 14-19 mm 4521N-D 14-19 mm 4 60 mm 4522-1 90 g
Ball Bearing Internal Extractor with Gunmetal Finish 16-21 mm 4521N-E 16-21 mm 4 60 mm 4522-1 80 g
Ball Bearing Internal Extractor with Gunmetal Finish 18-23 mm 4521N-F 18-23 mm 4 60 mm 4522-1 100 g
Ball Bearing Internal Extractor with Gunmetal Finish 20-25 mm 4521N-G 20-25 mm 4 60 mm 4522-1 110 g
Ball Bearing Internal Extractor with Gunmetal Finish 25-30 mm 4521N-H 25-30 mm 4 60 mm 4522-1 120 g
Ball Bearing Internal Extractor with Gunmetal Finish 30-37 mm 4521N-I 30-37 mm 4 70 mm 4522-1 250 g
Ball Bearing Internal Extractor with Gunmetal Finish 35-42 mm 4521N-K 35-42 mm 4 70 mm 4522-1 270 g
Ball Bearing Internal Extractor with Gunmetal Finish 38-45 mm 4521N-L 38-45 mm 4 70 mm 4522-1 290 g
Ball Bearing Internal Extractor with Gunmetal Finish 43-50 mm 4521N-M 43-50 mm 4 70 mm 4522-1 290 g
Ball Bearing Internal Extractor with Gunmetal Finish 40-75 mm 4521N-S 40-75 mm 3 100 mm 4522-2 740 g
Ball Bearing Internal Extractor with Gunmetal Finish 70-115 mm 4521N-T 70-115 mm 3 130 mm 4522-2 1400 g
Download PDF Download PDF
