Production Metal Cutting Bi-Metal Bandsaw Blade for Special and Difficult Alloys

SKU
3858 PQ P9000
Product Details
  • PQ is a high-precision milled bandsaw blade with extreme rake angle for difficult to cut materials and special alloys
  • Stiffer backing material and higher grade powder HSS tooth tips offer the best performance and long life in difficult to cut materials.
  • For high productivity cutting
  • Special design combination of sharp cutting edges for easy penetration
  • 17° rake angle with patented floating set
  • Patented set levels produce a multi-chip cutting profile which reduces cutting forces and improves blade life
  • Provides greater life for users looking for high removal rates, fast cutting
  • High precision milled blade with extreme 17° rake angle for difficult to cut materials
  • Multi-chip performance
Documents
Technical Details
Round Solid Shape Square Solid Shape
Grouped product items
Product Buy online
3858-41-1.3-PQ-1.4/2 41 mm 1-1/2 in 1,3 mm 0,05 in 1.4/2 PQ
3858-41-1.3-PQ-2/3 41 mm 1-1/2 in 1,3 mm 0,05 in 2/3 PQ
3858-41-1.3-PQ-3/4 41 mm 1-1/2 in 1,3 mm 0,05 in 3/4 PQ
3858-54-1.6-PQ-.9/1.2 54 mm 2 in 1,6 mm 0,062 in 0.9/1.2 PQ
Media

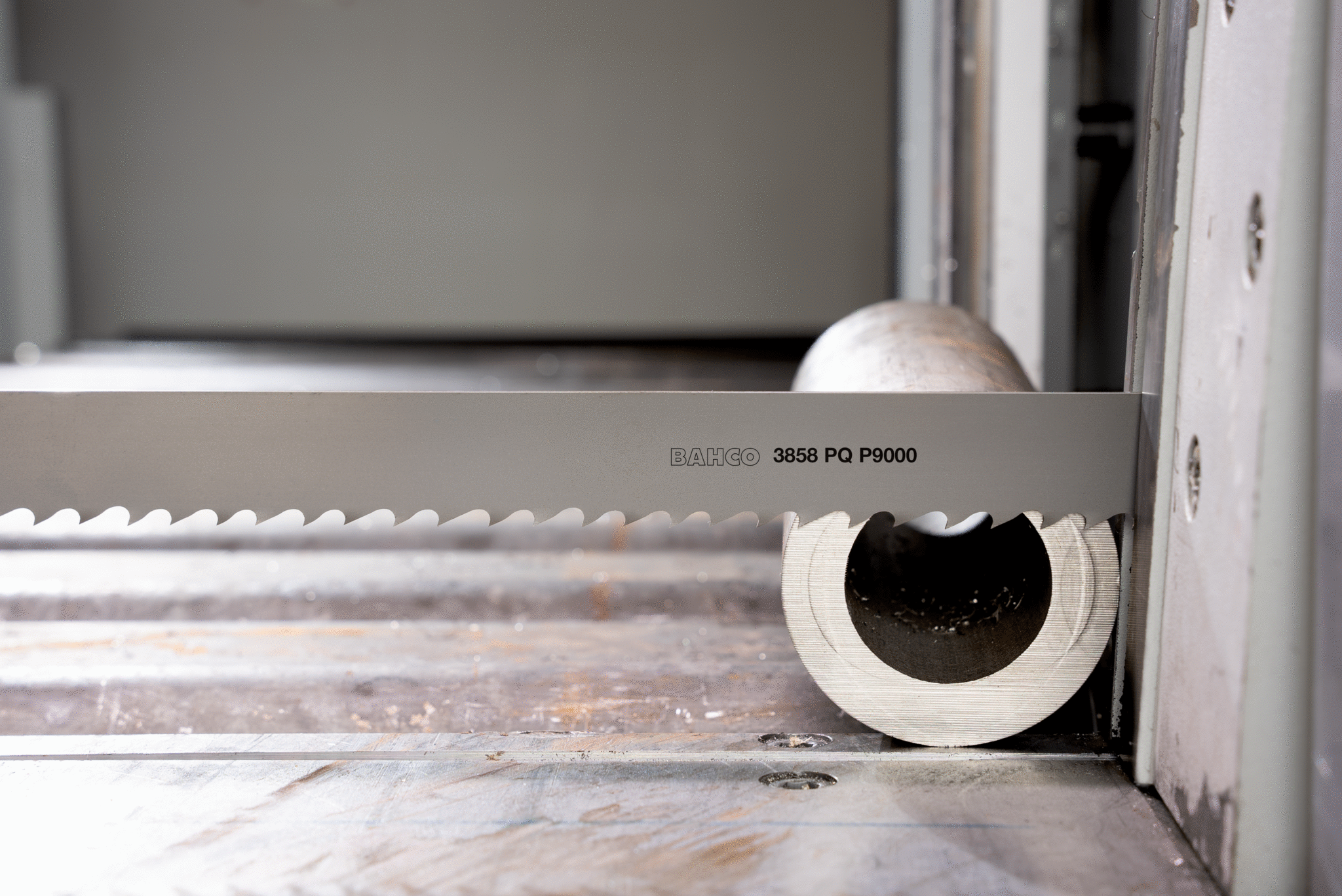

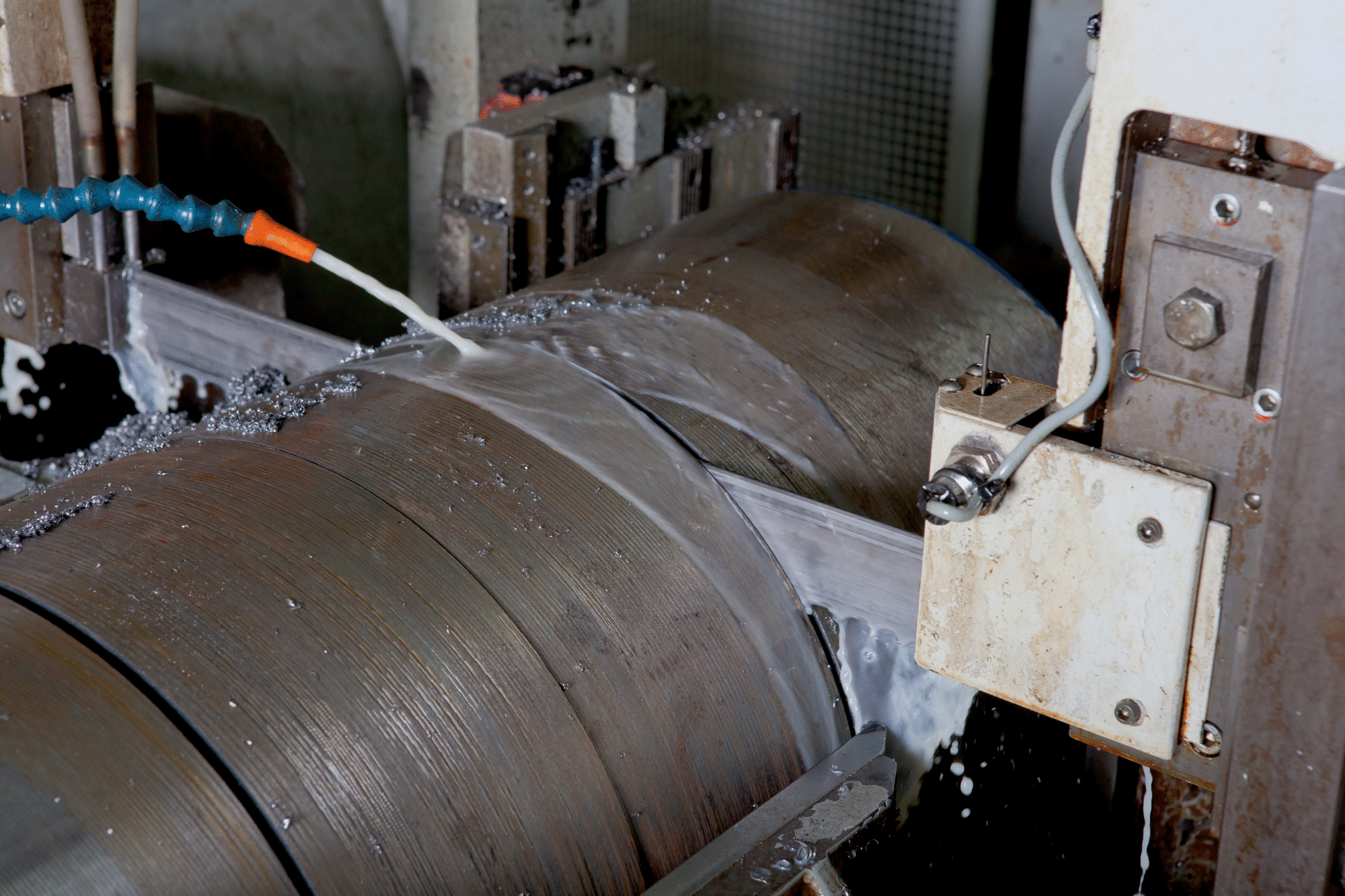

PHG_bandsaw_appl.jpg Bahco_3858_PQ_P9000_appl-01.jpg
Download PDF Download PDF
