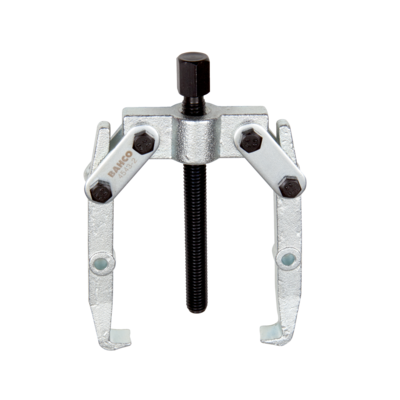

2-/3-Arm Light Duty Pullers with Galvanized Finish

SKU

4543

Buy online Buy local

Product Details

Extractor: two- and three-arm
Made of special steel
Galvanised finish
Used on terminals, gears, ball bearings and pulleys etc.
Handy puller for light duty work
4543-10 to -30 with three arms
4543-1 to -3 with two arms
4543/B Spare body
4543-12/B for 4543-1 and 4543-2
4543-3/B for 4543-3
4543-1020/B for 4543-10 and 4543-20
4543-30/B for 4543-30
4543K Spare arm
4543K110 for 4543-1 and 4543-10
4543K220 for 4543-2 and 4543-20
4543K330 for 4543-3 and 4543-30
4543/S Spare spindle
4543-1/S for 4543-1 and 4543-10
4543-2/S for 4543-2 and 4543-20
4543-3/S for 4543-3 and 4543-30

Documents

Add to Wish List Send a Request

Technical Details

Grouped product items
Product								Buy online
4543-1	10-60 mm	40 mm	1 to	10 kN	M8x85 mm	10 mm	160 g
4543-2	10-70 mm	65 mm	1.2 to	12 kN	M8x85 mm	10 mm	190 g
4543-3	10-90 mm	84 mm	2 to	20 kN	M10x105 mm	12 mm	320 g
4543-10	10-60 mm	40 mm	1.2 to	12 kN	M8x85 mm	10 mm	200 g
4543-20	10-70 mm	74 mm	1.3 to	13 kN	M8x85 mm	10 mm	260 g
4543-30	10-90 mm	84 mm	2.5 to	25 kN	M10x105 mm	12 mm	420 g
4543-12/B	70 mm						50 g
4543-3/B	90 mm						50 g
4543-1020/B	70 mm						70 g
4543-30/B	100 mm						60 g
4543K110		40 mm					65 g
4543K220		74 mm					65 g
4543K330		84 mm					65 g
4543-1/S					M8x85 mm	10 mm	40 g
4543-2/S					M8x85 mm	10 mm	35 g
4543-3/S					M10x105 mm	12 mm	60 g
