Pre-Set Torque Screwdrivers with Window Scale and ESD Safe

SKU
PS501
Product Details
  • Range covering between 4 cN.m and 450 cN.m torque values
  • Torque measurement clockwise only, can be used to loosen fasteners without affecting the internal mechanism
  • Clicking system triggers a tactile and audible signal
  • 1/4" hex non-magnetic spring-loaded bit holder to avoid damaging sensitive equipment or components in electronic applications
  • All-metal 3-lobe handle
  • Accurate to ± 6% CW
  • Cam-over torque limiting clutch for repeatability and accuracy
  • Non-magnetic spring loaded bit holder to avoid damaging sensitive equipment or components in electronic applications (1/4" 6.3 DIN 3126, ISO 1174)
  • An adapter makes it possible to use 1/4" sockets (1/4" 6.3 DIN 3120, ISO 1174)
  • The desired torque value is easily set using an internal adjustment screw accessible by removing the end cap of the handle
  • Supplied in an adjustable semi-transparent square tube
  • On request preset screwdrivers can be set and certified with a declaration of conformity in compliance with international standards
  • Standards: DIN/ISO 6789 EN 26789/1994
  • Standards: ISO 6789/IEC61340-5-1
  • ESD safe (IEC 61340-5-1)
  • Made in USA
Technical Details
Grouped product items
Product Buy Now

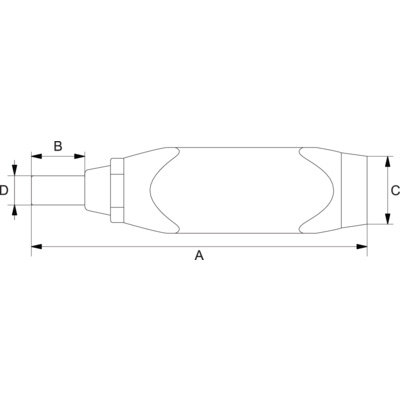

PS501-1 4-22 cNM 1/4 in 115 mm 18.2 mm 28 mm 9.6 mm 0.147 kg
PS501-2 7-70 cNM 1/4 in 141 mm 18.2 mm 28 mm 9.6 mm 0.200 kg
PS501-3 15-170 cNM 1/4 in 141 mm 18.2 mm 28 mm 9.6 mm 0.198 kg
PS501-4 45-450 cNM 1/4 in 154 mm 18.2 mm 32 mm 9.6 mm 0.270 kg
