ERGO™ Precision Diagonal Cutters with Oval Head

SKU
RX 8130-RX 8162
Product Details
  • Precision oval head diagonal cutters developed according to the scientific ERGO™ process, Oval head
  • ERGO™ handles with two-component combination, thermoplastic surface, for comfortable grip, on tough polypropylene core for rigidity
  • Micro-bevel, flush and ultra-cut
  • The cutting capacity that is given is for copper wire
  • Cutting capacity: 0.1 mm-0.8 mm to 0.4 mm-2 mm
  • High performance alloyed steel
  • Phosphate finish
  • Numerically controlled machine grinding guarantees edge angle accuracy and contact, increases the tool's reliability and consistency
  • Precision induction-hardened edges 63-65 HRC
  • Screw joint minimises friction and maximises alignment of cutting edges
  • ESD safe handles in two-component synthetic material
  • Bio spring limits the tension throughout the working cycle of the tool and can be adjusted to 3 different positions or removed

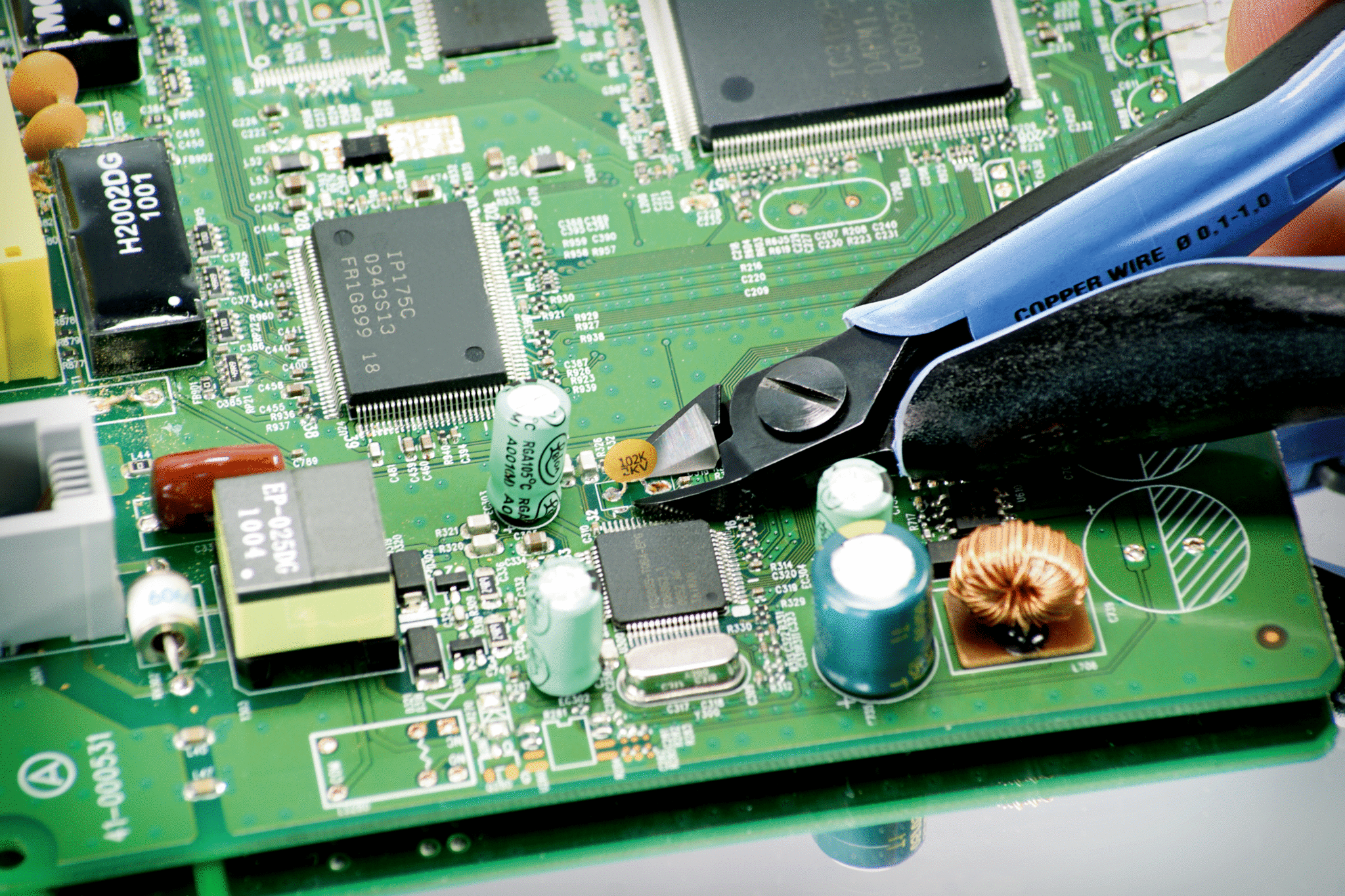

  • Ideal for wire harness work and standard printed circuit board assembly
Technical Details
Grouped product items
Product Buy online
RX 8140 135.5 mm 10.5 mm 10 mm 6 mm 0.8 mm 0.2-1.25 mm Micro 70 g
RX 8141 135.5 mm 10.5 mm 10 mm 6 mm 0.8 mm 0.1-1.25 mm Flush 70 g
