100A Battery Charger/Power Supply

SKU
BBCE12-F100
Product Details
  • 70 amp fully automatic battery charger/maintainer for 12V batteries
  • Able to supply up to 70 amperes continuously, but can reach 100A for a period of 3 minutes
  • It is also a power supply that maintains a stable voltage (allowing voltage adjustment between 13.0-14.8V) under varying loads, during major vehicle ECU reprogramming and diagnostic work
  • Application: boats, passenger cars, campers, commercial vehicles, buses, agriculture vehicles, trucks, etc.
  • Aided by microprocessor controlled technology
  • This technology allows a multi-rate charging sequence for added precision, safety and increase battery life
  • Designed for all types of lead-acid batteries such as AGM, Cal/Cal, Gel, VRLA, and Start&Stop batteries
  • Charging mode can be set to Automatic or Manual mode, where you can set the charging rate to 4, 20 or 70 amps
  • Manual mode allows the desired charging time to be set
  • Desulphating mode, achieving 15.8V max
  • Showroom (Supply) mode available
  • Float-mode monitoring: Automatically maintains optimum battery charge
  • Heavy duty construction
  • Andersson connector that ensures an optimal connection and current transfer
  • Heavy-duty clamps with replaceable jaws on a 5 metre cable, with 42 mm clamp opening width and equipped with a copper bridge between the clamp jaws to ensure even current distribution between the jaws
  • Safe
  • Reverse polarity protection
  • Dual temperature-controlled cooling fans

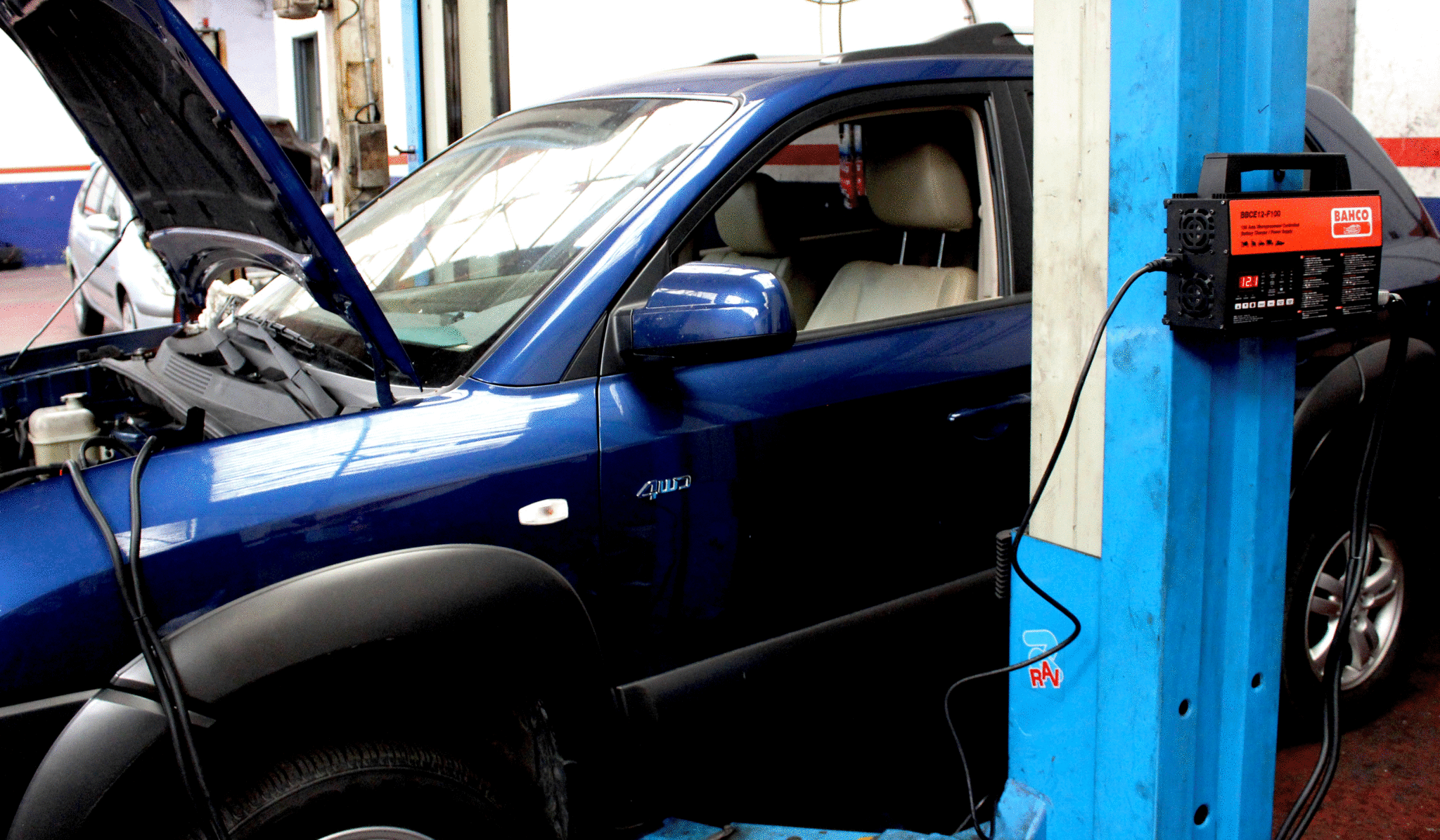

  • Adjustable mounting brackets for easy permanent installation on most shop post lifts
  • Operating temperature: -20 °C / +40 °C
  • Working life (MTBF): 85,000 hours
  • CE certified according to Directives 2014/35/EU and 2014/30/EU
  • Package contents: Charger/maintainer, clamps, power supply cable, 4 mounting brackets and screws, and user manual in 16 languages
Documents
Instruction Manual Download
Technical Details
Grouped product items
Product Buy Now
BBCE12-F100 12 V 4/20/70/100A A X 0 - 2000 A·h 35 mm² 5000 mm X 42 mm 20 450 x 140 x 450 mm 9820 g
